Unshielded Twisted Pair CAT.5e Cable (1)

Unshielded Twisted Pair CAT.5e Cable (3)

Unshielded Twisted Pair CAT.5e Cable (2)

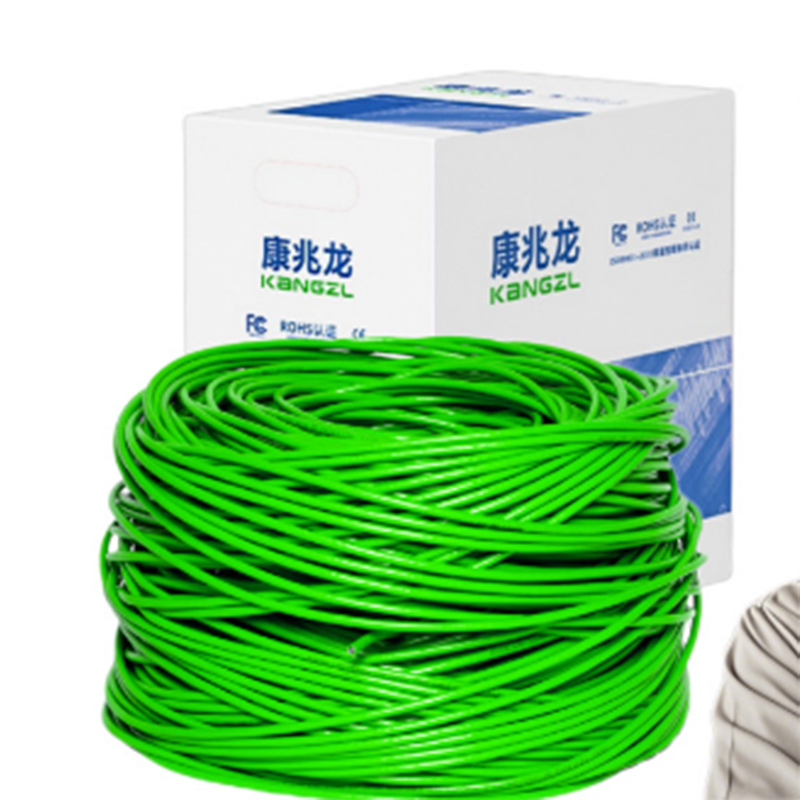

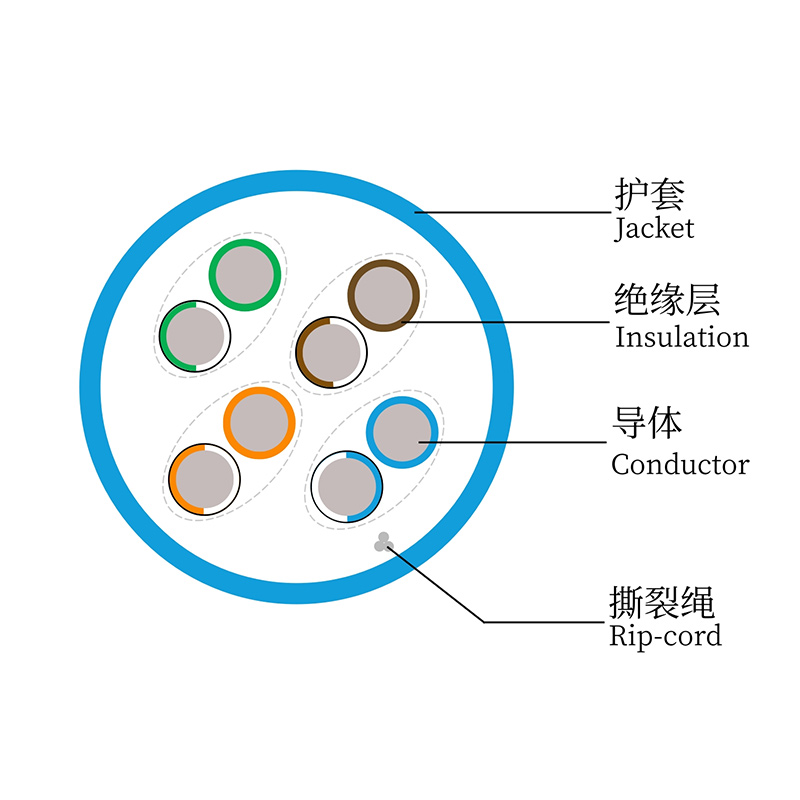

Unshielded Twisted Pair CAT.5e Cable

Features: Utilizes high-purity oxygen-free copper conductors with high-speed twisted-pair structure design. Each pair features individually optimized twist pitch. Premium eco-friendly outer jacket provides strong anti-interference capability, minimal signal attenuation, and high transmission speeds.

Product Details

Conductor Specification: 24 AWG

Conductor Material: High-purity oxygen-free copper

Outer Sheath: Eco-friendly, anti-aging, premium PVC

Color: Silver-Gray

Wire Color code:White-Blue/Blue/White-Orange/Orange/White-Green/Green/ White-Brown/Brown

Outer Diameter: 5.5 mm

Performance Requirements: Complies with ANSI/TIA/EIA-568-B and ISO/IEC 11801 Category 5e standards

Installation Temperature: 0℃ to 50℃

Operating Temperature: -20℃ to 60℃

Transmission Bandwidth: 155MHz, primarily for 100Base-T and 10Base-T network transmission, suitable for voice and data transmission up to 155Mbps

Applications: Enterprise internal network cabling, residential wiring, home broadband internet access, various local area networks
