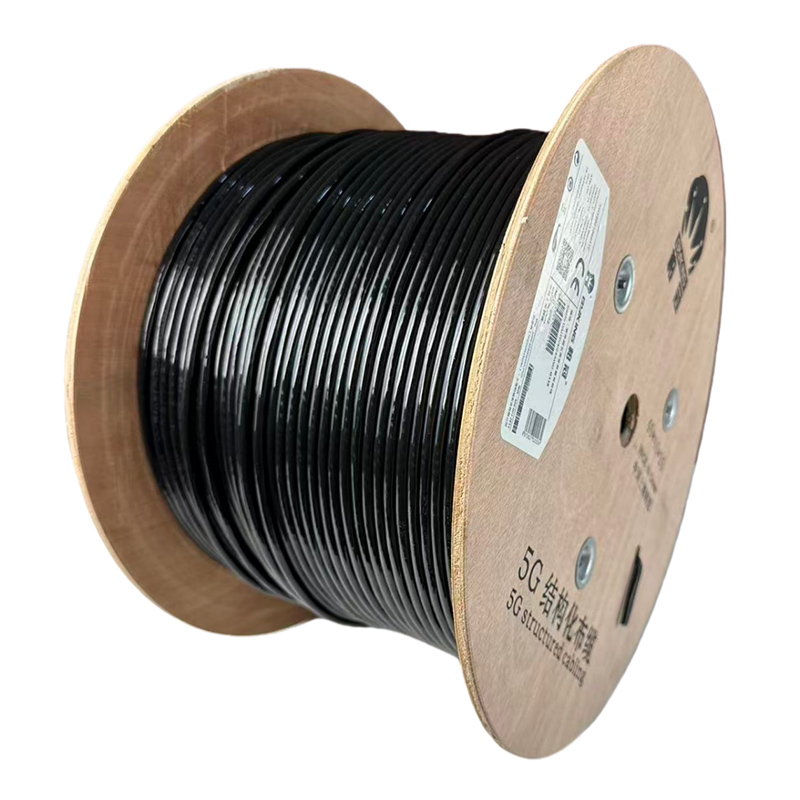

Outdoor Network Cable (Double-Layer)

Material: 23AWG high-purity oxygen-free copper conductors

Specifications: Category 5 Unshielded, Category 5 Single-Shielded, Category 5 Double-Shielded, Category 6 Unshielded, Category 6 Single-Shielded, Category 6 Double-Shielded

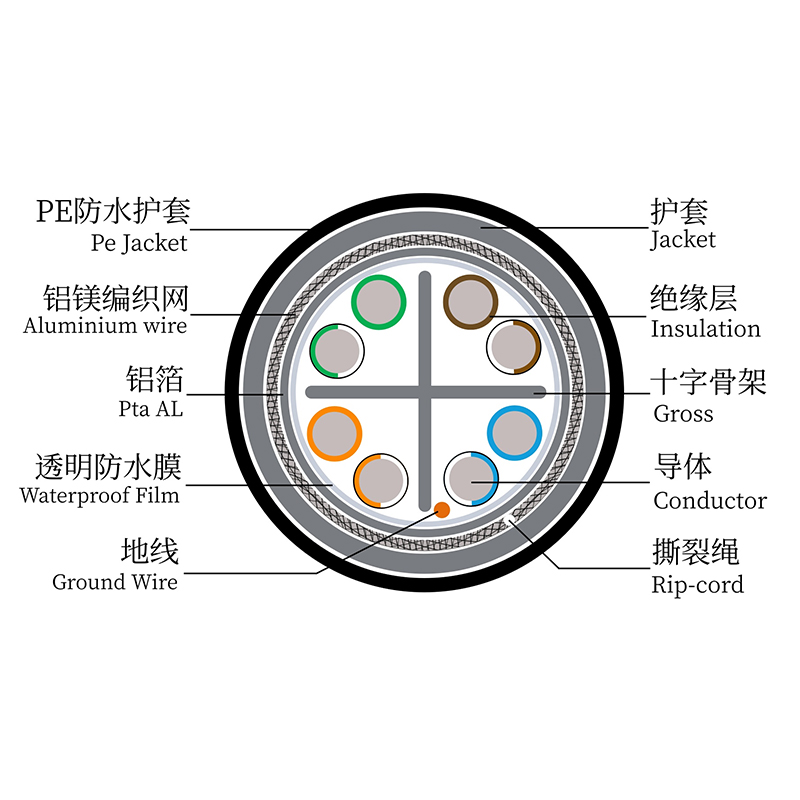

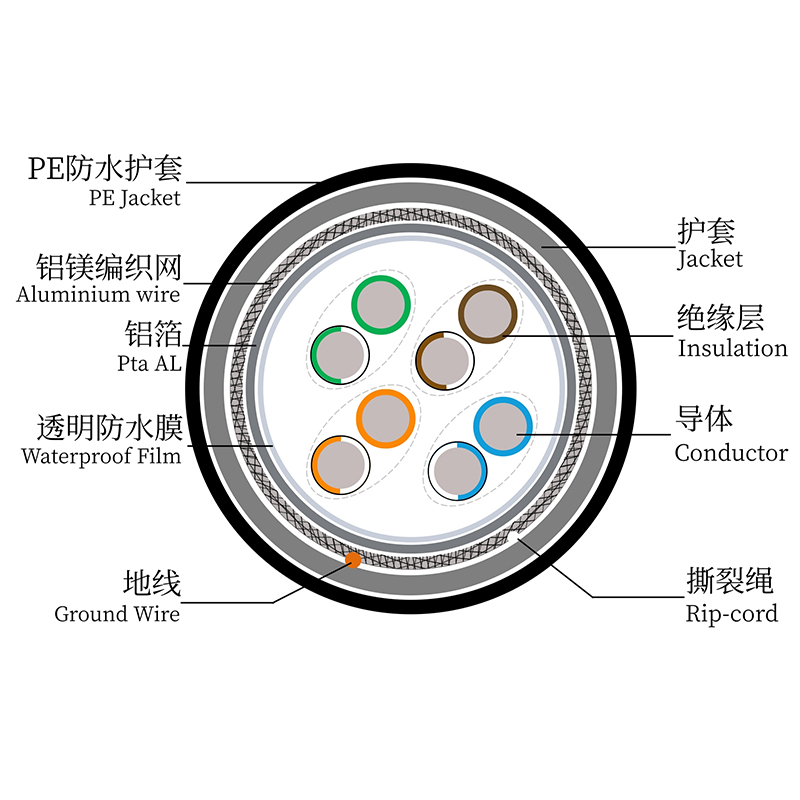

Outer Sheath: Water-blocking, UV-resistant PE + eco-friendly, anti-aging premium PVC

Color: Black

Core Color Coding: White-Blue/Blue, White-Orange/Orange, White-Green/Green, White-Brown/Brown

Cable Outer Diameter: 7.0~8.5mm

Compliance: ANSI/TIA/EIA-568-B and ISO/IEC 11801 network cable standards

Installation Temperature: 0℃ to 50℃

Operating Temperature: -40℃ to 60℃

Transmission Bandwidth: 250MHz, primarily for 100Base-T and 1000Base-T network transmission; supports voice and data transmission at up to 1000Mbps

Applications: Outdoor surveillance systems (camera/NVR host connections); Campus/campus network coverage (inter-building connectivity, wireless AP deployment); Agricultural IoT (greenhouse sensors, irrigation system communication); Security alarm systems; Outdoor engineering projects.
